Product Overview

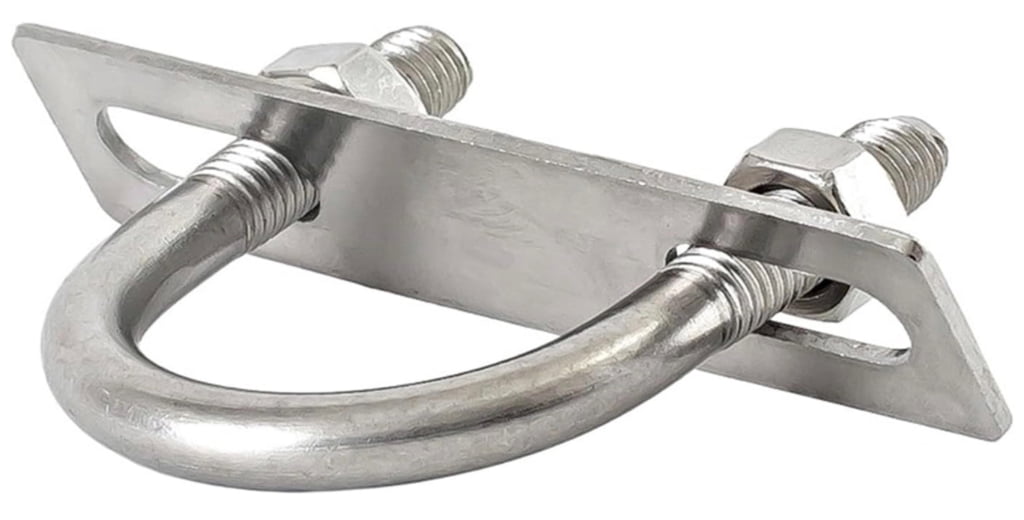

The U-shaped Clip is a fundamental and widely used standard fastener, valued as a cost-effective solution for securing pipes (round or square) to supporting structures due to its simple design and economical price. Its open design allows for quick engagement and installation, providing reliable clamping force through bolt tightening. It is an ideal basic connector for modular frames, simple guardrails, support brackets, and temporary structures.
Core Design & Mechanism
The product’s effectiveness stems from its straightforward geometry and direct mechanical principle:
Open U-shaped Structure: The main body is U-shaped with an open side, enabling it to be quickly slipped onto the target pipe from the side for preliminary positioning.
Through-Bolt Locking: Coaxial bolt holes are located at the two ends of the U-opening. During installation, the clip is placed around the pipe and against the support structure. A high-tensile bolt is then inserted and tightened. The bolt tension pulls the U-arms inward, firmly clamping the pipe and support structure together.
General-Purpose Design: Standardized internal dimensions and opening widths allow it to accommodate a range of pipe sizes within its specified capacity.
Key Features & Benefits
Exceptional Installation Ease: The side-entry design allows for quick engagement without needing to thread the pipe through an end, making it ideal for mid-span installation or reinforcement in pre-assembled or space-constrained structures.
Excellent Economy & Versatility: Its simple construction results in low manufacturing costs, making it one of the most common and economical choices for light-duty shelving, equipment mounts, simple fencing, greenhouse frameworks, and electrical conduit support.
Reliable Clamping Force: Upon bolt tightening, the elastic deformation of the U-arms generates sustained clamping pressure, effectively preventing pipe rotation or slippage.
Robust & Durable Material: Standard products are made from hot-dip galvanized carbon steel, ensuring good rust resistance and outdoor durability. Stainless steel options are available for corrosive or hygienic special environments.
Flexibility & Adjustability: The position of both the pipe and the clip can be finely adjusted before final tightening, facilitating on-site alignment and installation.
Technical Suitability
Suitable for connecting common round and square pipes to steel plates, channels, or other flat structures.
Applicable for static, light to medium-duty load scenarios.
Provides a standardized mechanical connection method that is more flexible than welding and more regulated than strapping.
Conclusion
With its unbeatable cost-effectiveness, exceptional installation convenience, and reliable performance, the U-shaped Clip stands as one of the most fundamental and versatile fasteners in industrial and construction applications. For projects that are budget-conscious, require rapid deployment, or demand flexible adjustments, it represents a simple, effective, and trustworthy connection solution.
