Product Overview

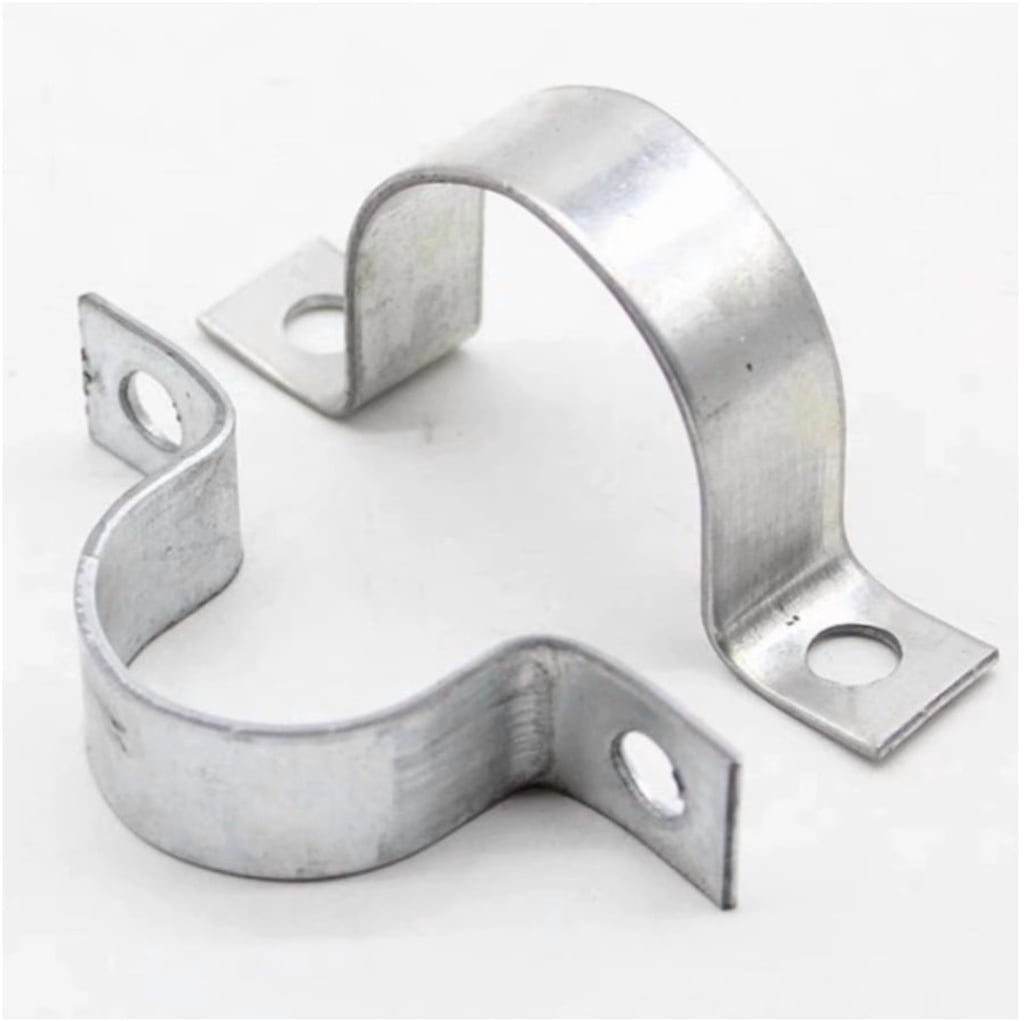

Round Pipe Clips are versatile, standardized fasteners designed for the quick and secure connection of circular cross-section tubing (such as round steel bars or pipes) to various support structures, cross rails, or adjacent pipes. Their core advantage lies in perfect conformity to cylindrical surfaces and the application of uniform pressure, providing reliable anti-rotation and anti-slide fixation. They are the ideal choice for constructing modular frameworks, guardrail systems, pipe supports, and temporary structures.
Core Design & Mechanism
The product design is based on precise geometry and efficient mechanical force transfer:
Curved Contour Groove: The inner surface of the clamp body is shaped to match the target pipe diameter, ensuring maximum area contact with the pipe’s outer wall for initial stable engagement.
Radial Locking Mechanism: Tightening is achieved via high-tensile bolts (e.g., M8, M10) that pass through both sides of the clip. As the bolts are tightened, the clip generates uniform radial clamping force, gripping the round pipe firmly like a “vice” while simultaneously securing it to a mounting plate or another member.
Reinforced Structural Integrity: Clips are often reinforced with thicker material or ribs around bolt holes and key stress points to withstand multi-directional loads, preventing deformation or failure under long-term use or overload.
Key Features & Benefits
Broad Versatility & Compatibility: Suitable for a wide range of standard pipe diameters, making them one of the most common connection solutions for storage racking, light steel structures, stage trussing, greenhouse frames, temporary fencing, and machinery guards.
Extremely Simple Installation: Requires no welding or pre-processing of the pipe (e.g., drilling), enabling true “clamp-and-go” assembly. Installation and disassembly can be done with common wrenches, dramatically improving construction and adjustment efficiency.
Secure & Reliable Connection: The combination of curved surface contact and radial locking effectively prevents pipe rotation or axial movement at the joint, ensuring overall structural rigidity and stability.
Cost-Effective & Durable: Standard products are made from high-quality carbon steel with hot-dip galvanizing, offering good corrosion resistance and an excellent strength-to-cost ratio. Stainless steel options are available for demanding environments like food processing, pharmaceuticals, or coastal areas.
Flexible & Adjustable: Some designs allow for minor adjustments before final tightening, facilitating on-site alignment and installation corrections.
Technical Suitability
Suitable for connecting common industrial standard round pipes (e.g., Φ33mm, Φ48mm, Φ60mm).
Applicable for both static structures and applications subject to moderate vibration or cyclical loads.
Provides a standardized, industrial connection method that is more flexible than welding and more reliable than strapping.
Conclusion
With their outstanding versatility, unparalleled installation ease, and dependable connection performance, Round Pipe Clips are a fundamental and benchmark solution in the realm of round pipe structural connections. Whether for rapidly deployed temporary setups or robust permanent frameworks, they deliver professional-grade solutions at an economical cost, serving as a reliable partner for engineers, builders, and DIY enthusiasts alike.
