Product Overview

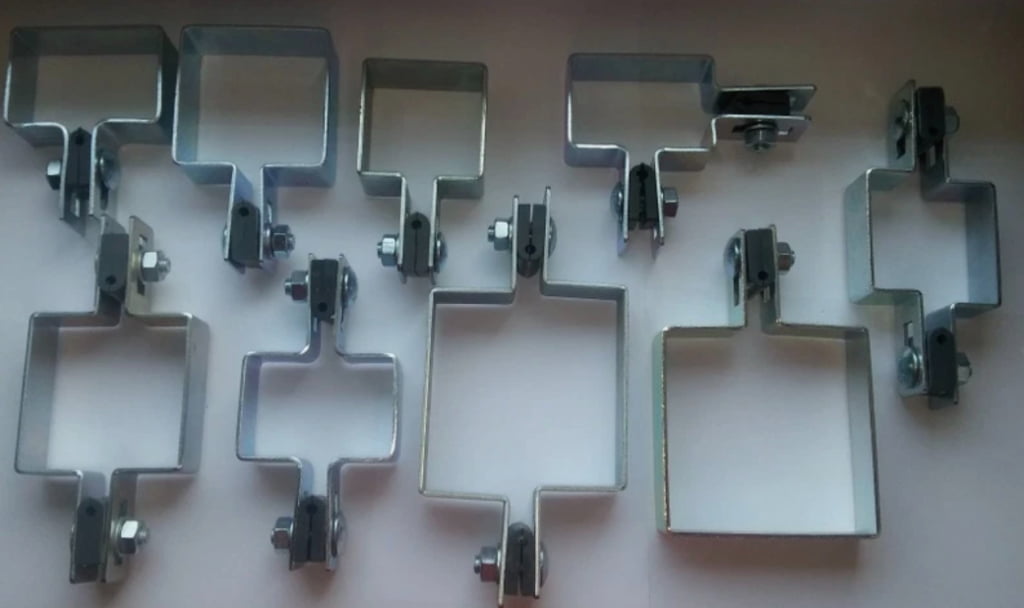

Square Post Clips are standardized connectors specifically engineered to create secure, rigid joints between square or rectangular profile posts (such as square tubes or beams) and horizontal rails, guardrails, or other structural members. By utilizing a precise right-angle clamping design and powerful locking force, they form stable and reliable connection points on the flat faces of the post, effectively preventing loosening and relative rotation. They are an essential fastening component in modular framing systems, safety guardrails, and storage rack structures.
Core Design & Mechanism
The product’s design focuses on perfect adaptation and mechanical optimization for square posts:
Right-Angle Enveloping Clamp Body: The main body features an internal right-angle design that precisely matches the dimensions of the target square post, ensuring maximum contact with the post’s faces (or primary load-bearing surfaces) for initial alignment and anti-rotation.
Through-Bolt Locking System: Typically employs high-tensile bolts that pass vertically or horizontally through the clip and the connecting member. Tightening generates uniform pressure across the inner surfaces, creating a firm “hug” on the post while securely locking it to the rail.
Reinforced Structural Design: Reinforcing ribs are often integrated around the corners or bolt holes to distribute stress and prevent deformation of the clip itself under high load, ensuring long-term reliability.
Key Features & Benefits
Superior Fit & Stability: Designed specifically for square profiles, the large contact area creates a wobble-free connection point, offering far greater resistance to torsion and rotation compared to using generic round clamps on square posts.
Simple & Efficient Installation: Eliminates the need for complex drilling or welding on the posts. Installation, adjustment, and dismantling are quick and easy using standard tools and bolt-fastening, significantly saving labor time.
Broad Application Range: Widely used in industrial platform handrails, warehouse storage rack systems, architectural framing, exhibition booth structures, agricultural greenhouse frameworks, and any field utilizing square structural tubing.
Robust & Durable Materials: Standard products are made from high-strength carbon steel with hot-dip galvanizing for excellent rust resistance. Stainless steel (304 or 316) options are available for demanding environments with high corrosion or hygiene requirements, such as food and chemical processing.
Modular & Reusable: The standardized design makes them integral to modular systems, supporting flexible structural reconfiguration and allowing for multiple reuse cycles, offering economic and environmental benefits.
Technical Suitability
Suitable for connecting standard-sized square or rectangular steel tubes (e.g., 50x50mm, 60x60mm).
Ensures connection points remain steadfast under dynamic loads or in vibrational environments.
Represents the ideal industrial solution for the rapid and reliable assembly of square-tube structures.
Conclusion
The Square Post Clip is a critical linking element in square-profile structural systems, combining precise engineering, user-friendly installation, and reliable mechanical performance. For engineers, contractors, and system integrators, choosing dedicated Square Post Clips is a smart decision to ensure the overall safety, stability, and construction efficiency of their structures.
